Ottaway locomotive 1011
)

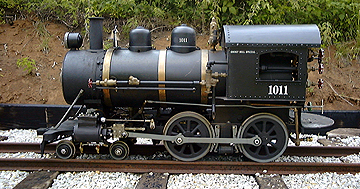

1011 profile view
)

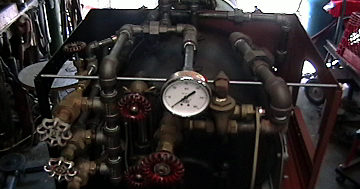

1011 backhead detail
This engine was one of four Ottaway steam trains formerly owned by Raymond Johnson of Wakefield, Kansas and ran in a Salina park for fourty years. This locomotive is currently owned by the C & H railroad. An extensive restoration of the chassis and running gear has recently been completed by Mike Hawkins, Steve Cregut and Dale Schafer to return this loco to running status. Boiler welding, ultrasound and hydrotesting was performed by Shamrad fabricators in St. Joseph Missouri
)

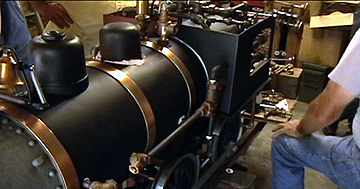

1011 new lagging installed
An earlier boiler rework by persons unknown left this boiler with ten 1-1/4" fire tube flues. Due to the resulting reduction in steam generating capacity, this loco now requires petroleum coke to generate useable steam power.
)

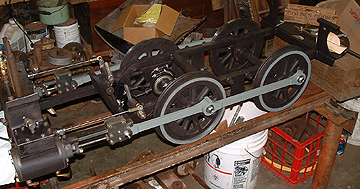

1011 chassis restoration
)

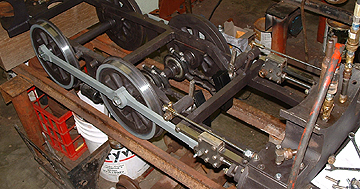

1011 chassis restoration
)
1011 chassis running on air
)

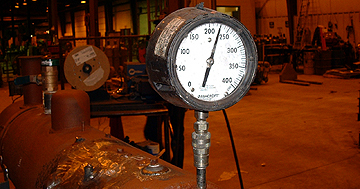

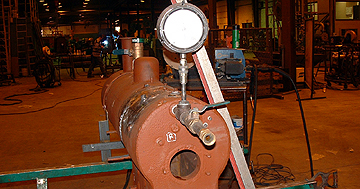

1011 pressure test
)
1011 pressure test
)

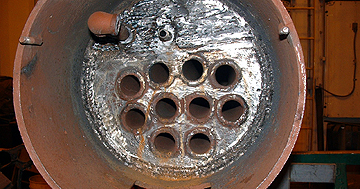

1011 firetube boiler flues
)
early 1011 Kenwood Park Salina
)
early 1011 Wakefield park August 5 1984
